Kedun KD-836 Professional Dynamic Microphone

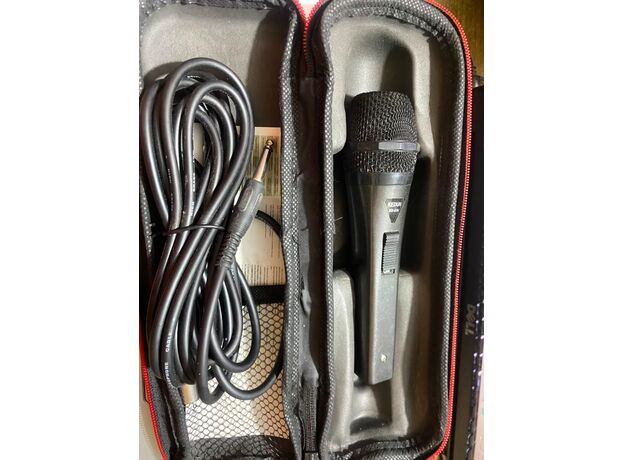

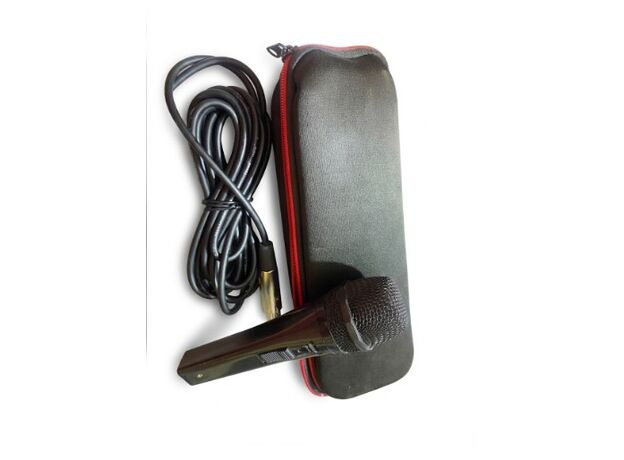

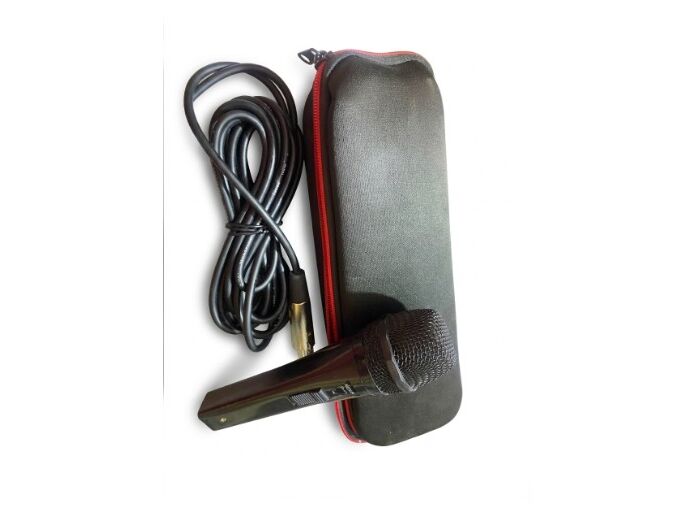

Box Contents & Hardware Components

• Microphone Body: The Kedun KD-836 handheld dynamic vocal microphone, featuring a built-in ON/OFF slide switch.
• Audio Cable: A thick, high-grade shielded audio cable.
  • Source Connector: 3-pin Female XLR (plugs into the base of the microphone).
  • Output Connector: Heavy-duty 6.35mm (1/4 inch) TS mono male jack (plugs into mixers, amplifiers, or karaoke machines).
• Storage Case: A custom-fitted, semi-rigid EVA hardshell zipper case with integrated foam molding to protect the microphone capsule and a mesh pocket to secure the cable.
• Documentation: A technical user leaflet containing basic operation instructions and handling precautions.

Technical Performance Metrics

• Capsule Type: Moving-coil dynamic structure (does not require external phantom power or batteries).
• Pick-up Pattern: Uni-directional cardioid configuration to suppress peripheral room reflection and feedback.
• Output Impedance: Nominally 600 ohms (±30% at 1kHz), matching standard PA system inputs.
• Sensitivity Rating: Optimized for high-gain speech, reading roughly at -75dB ±3dB.
• Frequency Range: Covers a standard vocal range from 100Hz up to 10kHz.
